Sapphire IMS allows performance monitoring of individual CPU's (cpu0, cpu1, cpu2 etc.), load percentage in addition to average CPU’s load percentage in both agent and agent less environment.

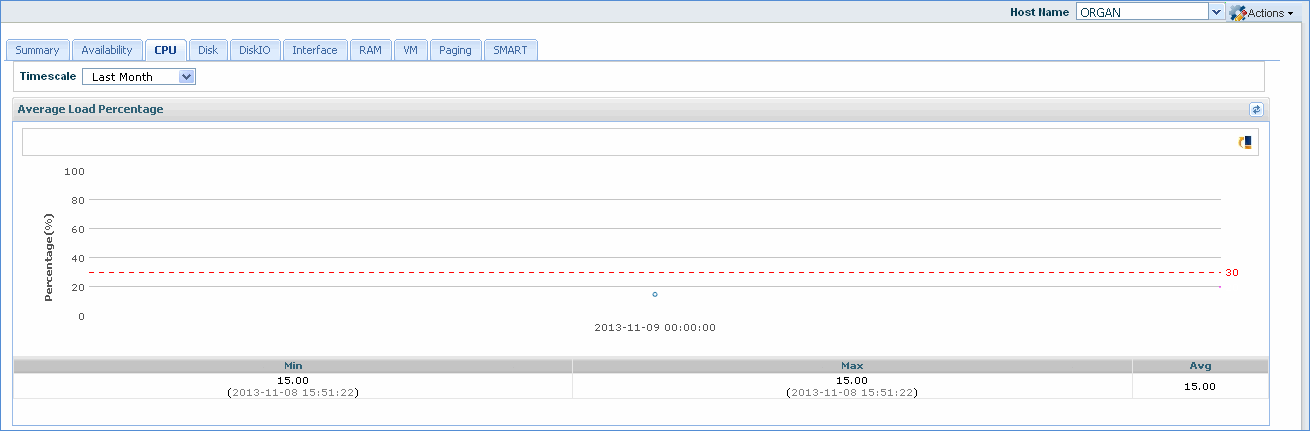

Select the Host Name whose CPU’s have to be monitored and click CPU to view the graph as shown below

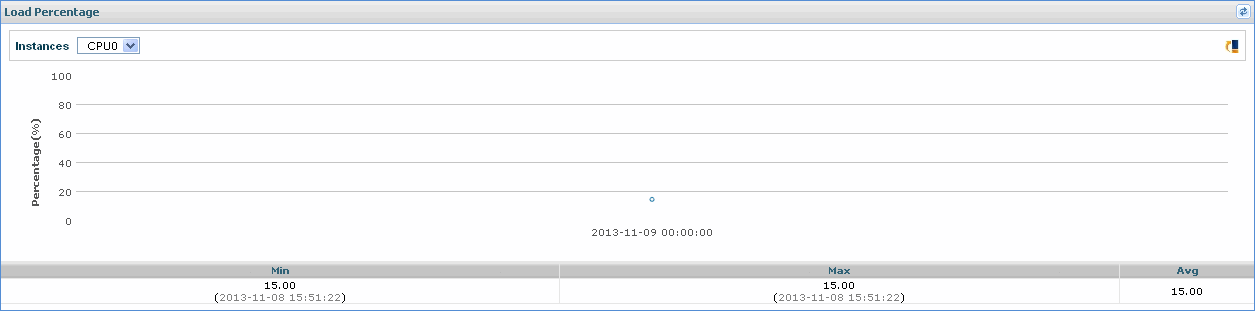

In the 'Instances' drop down, select the CPU instance for which the individual load percentage has to be displayed
Note: For devices with CPU data collection using SNMP, the index value is appended to the CPU instance name. This helps to differentiate between the different CPU instances.
