My Dashboard feature allows the user to configure custom dashboards. The dashboard configuration supports the addition of resource parameters like static parameters, dynamic parameters, and Top/Bottom ‘n’ parameters.

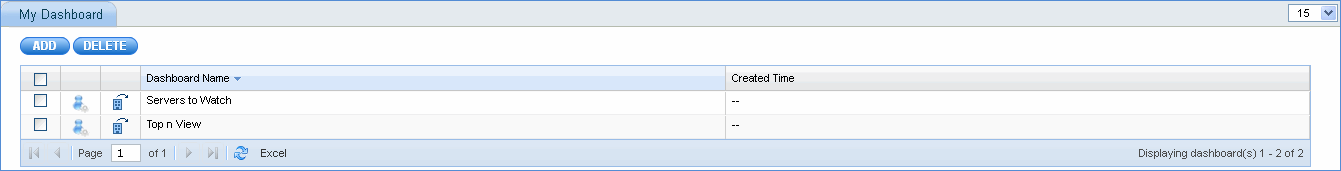

1. On the SapphireIMS menu, point to ‘Performance’ and click ‘My Dashboard’ > ‘Personalize’. The 'My Dashboard' listing page provides a list view of already configured dashboards.
Click ‘Add’
2. Enter a dashboard specific user friendly name.
3. Enter the Refresh Interval time.
4. Click the parameter for which dashboard is required.
Note: Click 'Map Users' to map the dashboard to other users.

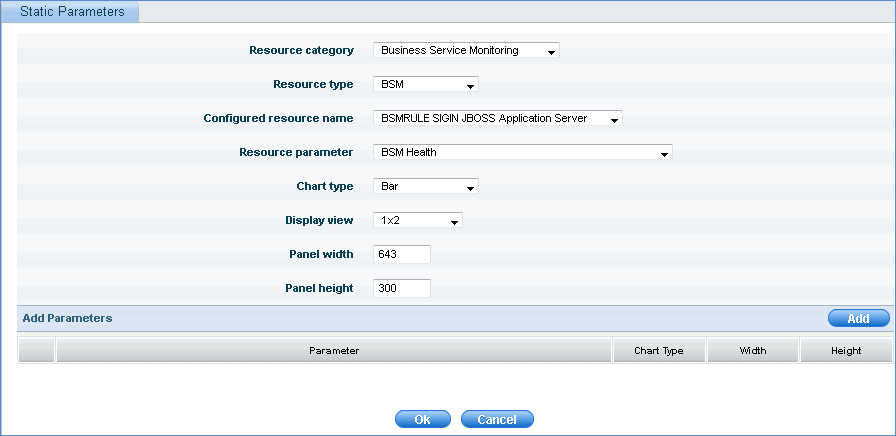

Static Parameters
Sr. No |
Field |
Description |
1 |
Resource Category | Select the category the resource parameter belongs to |
2 |
Resource Type | Select the resource type. Resource type will be listed based on the selected resource category |
3 |
Configured Resource Name | Select the configured resource name belonging to the resource type. Only the resources that are configured for monitoring will be listed here |
4 |
Resource
Parameter
|
Select the availability parameter. Each of the resource type has a predefined resource availability parameter to be monitored |
5 |
Chart Type | Select the type of chart for display |
6 |
Display View | Select the display view (rows * columns) |
7 |
Panel Width, Panel Height | Enter Panel Width/Panel Height |

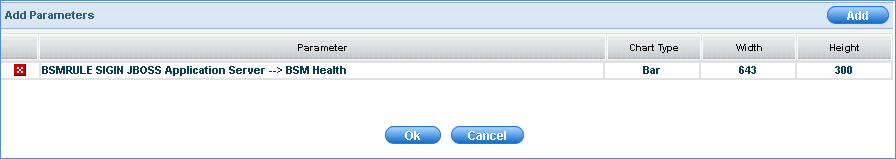

1. Click 'Add'
2. Click ‘OK’. Click ‘Save’ to save the dashboard configuration

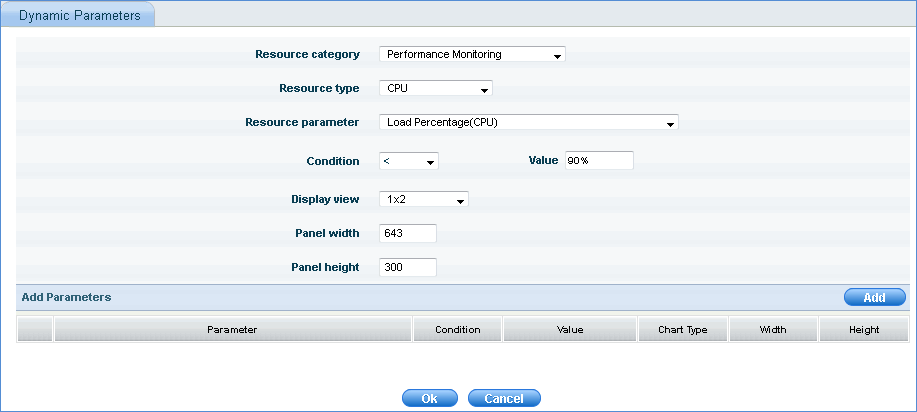

Dynamic Parameters
Condition: Select the condition of the resource parameter and enter the corresponding condition value

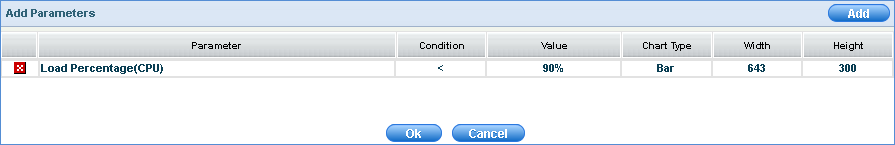

1. Click 'Add'
2. Click ‘OK’. Click ‘Save’ to save the dashboard configuration

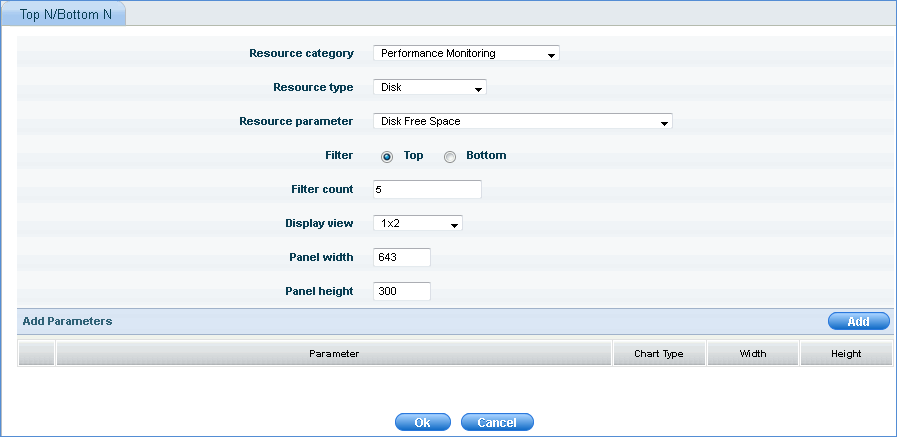

Top N/Bottom N Parameters
Filter: Select the filter option
Filter Count: Enter the filter count of parameters to be viewed
1. Click 'Add'
2. Click ‘OK’. Click ‘Save’ to save the dashboard configuration

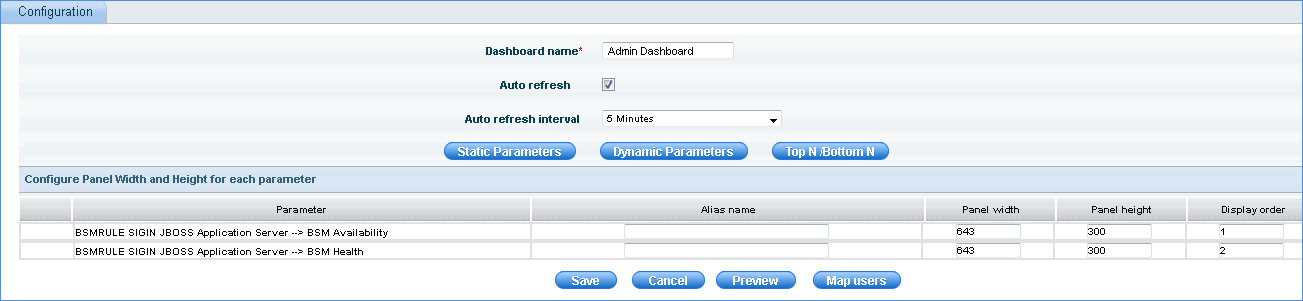

Display View:Select display view. The default panel width and height are displayed. This can be changed by the user.
Delete: Click
to delete the configured parameter.
Display Order: Enter display order value to change the row position of the parameter.
Preview:Click ‘Preview’ to view the preview of the configured dashboard.
Alias Name:Enter the Alias Name for the parameter.
