SapphireIMS supports Netflow for traffic monitoring. This topic describes the Netflow Viewer, to view the dashboard for analysis and view the summary and raw data. Refer to Settings->Fault and Notifications->Traffic Monitoring->Netflow for configuring Netflow.
From the top menu bar in SapphireIMS, point on 'Performance' and click 'Netflow'. The Netflow Dashboard is displayed.
The following dashboards are displayed:
Top N Talkers based on Traffic : Displays the top N sources of Traffic based on volume of data (stacked bar only).
Top N Host Names: Displays the top N hosts which are sources of traffic.
Top N Application: Displays the top N applications which are sources of traffic.
Top N Traffic Flow through interfaces: Displays the top N interfaces with volume of traffic (stacked bar only).
Top N Destination Ports: Displays the top N destination ports based on traffic volumes.
Top N Destination based on packets: Displays the top N destination based on packets.
Top N Destination based on bytes: Displays the top N destination based on traffic.
Top N Source Ports: Displays the top N source ports based on traffic volumes.
Top N Sources based on packets: Displays the top N sources based on packets.
Top N Sources based on bytes: Displays the top N sources based on traffic.
Click on
and
select from among the 'Top N' or 'Bottom N' data in the drop-down
list.
Click on
and
select from among the chart types in the drop-down list.
Click on
to select
the time scale for the dashboard.
Refer to section Changing the refresh interval if you want to enable auto-refresh and change the refresh interval.
Refer to section Setting up Analysis Filters to filter the data.
Once the filter rules are setup,
to save the search profile, click on
. A pop-up
is displayed to enter the profile details
Enter the 'Profile Name' and 'Description'. To publish this profile select 'Public' else select 'Private'.
Click on 'Save'. A confirmation is displayed that the profile is saved. Click on 'OK'.

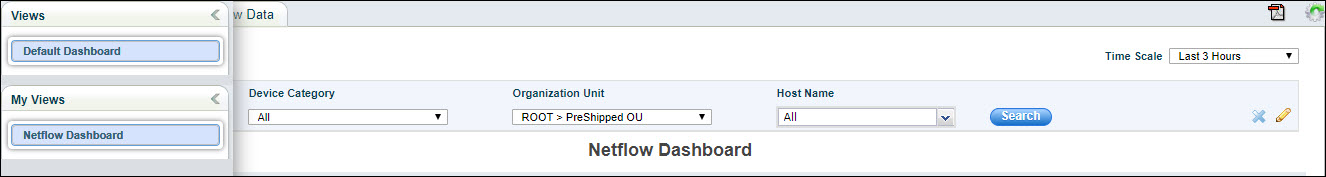

Once the profile is saved, it can be selected from the left hand menu which slides out when the arrow is clicked. The dashboard is updated based on the selected profile. Both 'Views' which are public and 'My Views' which are private are listed here.
To edit the profile click on
and to delete the profile click on
.
The Netflow traffic can be displayed in a tabular form in the Summary view.

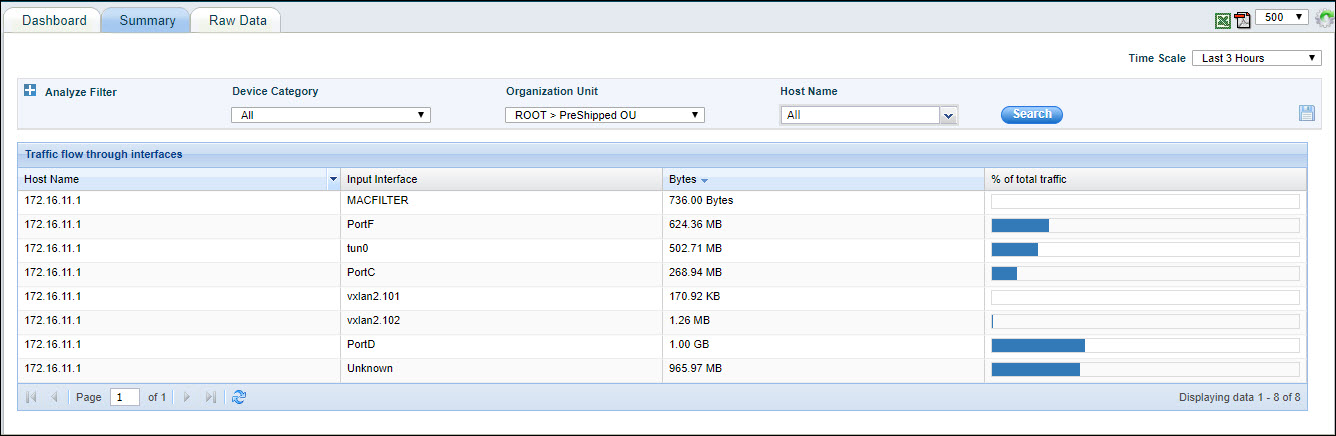

Click on the 'Summary' tab. The summary table is displayed.
Click on to select
the time scale for the summary view.
Refer to section Changing the refresh interval if you want to enable auto-refresh and change the refresh interval.
Refer to section Setting up Analysis Filters to filter the data.
Click on to create
a new profile by specifying the fields to use for aggregation and
display. The search profile pop-up is displayed.
Enter the 'Profile Name' and 'Description' for the profile.
Select the 'Access Type' as 'Public' to make it available for all or 'Private'.
Click on 'Save' to save the profile or 'Update' to update the profile.
The saved profiles are accessible from the left hand menu.
To save the summary table in a PDF, refer the section Saving Views and Reports as a PDF file.
To export the data in an excel, refer the section Exporting Views and Reports into an Excel file.
The Raw Data for the Event Log can also be viewed as a listing.
Click on the 'Raw Data' tab.

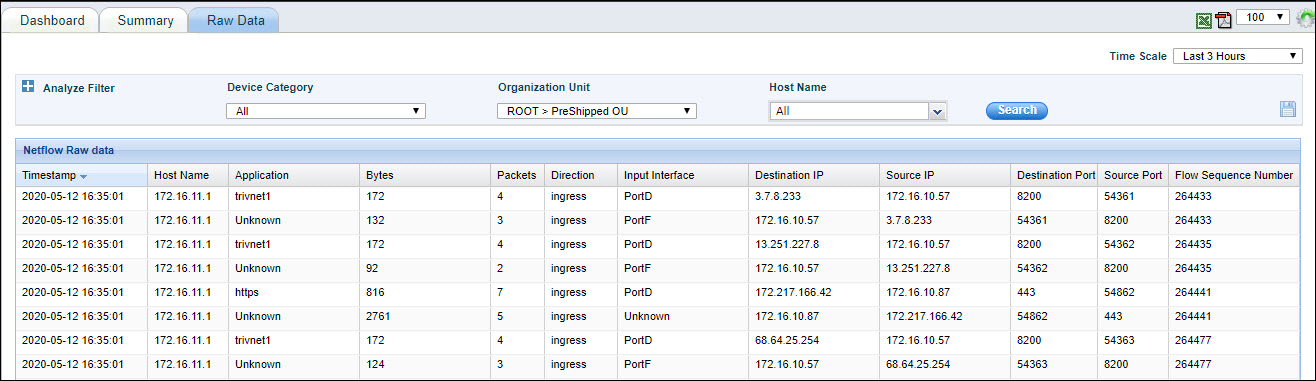

The traffic listing is displayed.
Use the Filter Analysis as detailed under Setting up Analysis Filters section to filter the raw data.
The views can be changed by selecting
the fields. Click on . The

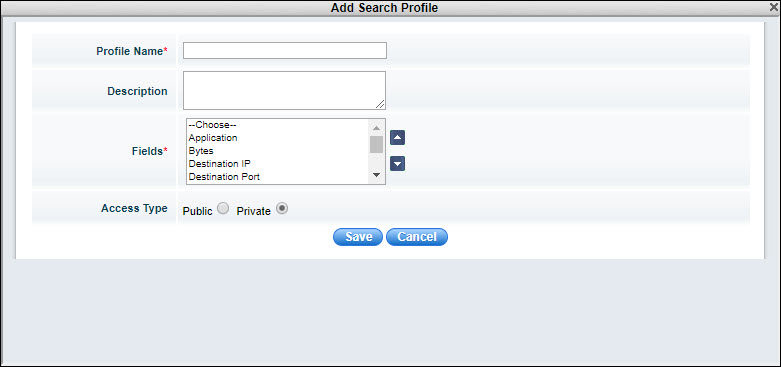

search profile entry screen pops-up.
Enter the 'Profile Name' and 'Description' for the profile.
Select the 'Fields' which should be displayed in the columns.
Select the 'Access Type' as 'Public' to make it available for all or 'Private'.
Click on 'Save' to create a new profile or 'Update' to update the profile.
To save the Raw Data in a PDF, refer the section Saving Views and Reports as a PDF file.
To export the data in an excel, refer the section Exporting Views and Reports into an Excel file.
Filters can be set to analyze the data displayed for dashboards and summary views. These filters could incorporate rules based on parameter values.

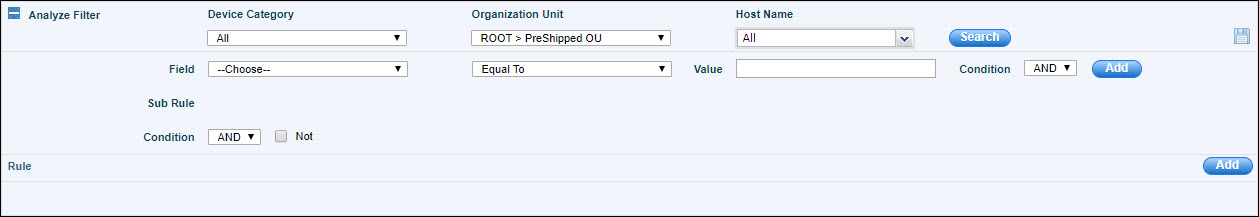

Click on 'Analyze Filter'. The Analysis Filter expands as shown below.
Select the 'Device Category', 'Organization Unit' and 'Host Name' to filter on.
You can create filter rules based on field values and combine multiple sub-rule into a single rule.
Click on 'Search'
after adding the rule. The data is filtered based on the rules and
displayed. To save the filter rules, click on ,
enter the profile details and save.
Click on
to select
the auto refresh interval. The refresh entry details screen pops-up.
Select 'Auto Refresh' if you want the dashboard to be automatically refreshed. Select the 'Auto Refresh Interval' and clock on 'Update'.
To save the dashboard in a PDF, refer section Saving Views and Reports as a PDF file.
To save the dashboard in a PDF file,
click on
. A pop-up to enter the PDF options is
displayed.
Select the 'Page Size' and 'Page type'. Click on 'Advanced' to select other options.
Select the 'Font Color', 'Border Color', 'Font' and 'Font style'. Click on 'Generate' to generate the PDF file.
Any view or report can be exported
into an Excel file. Click on
.
An excel file is created with the name as the label on top of the table in the summary or raw data views.
